No Till Planter
- $8,500.00
$10,100.00- $8,500.00
- Unit price
- per
Longhorn No-Till Multi Crop Drill is a seed planting machine that sows seeds directly into undisturbed soil without prior tillage, conserving soil structure and moisture.
Availability:
Out Of Stock
Experience the Product in 3D
Overview

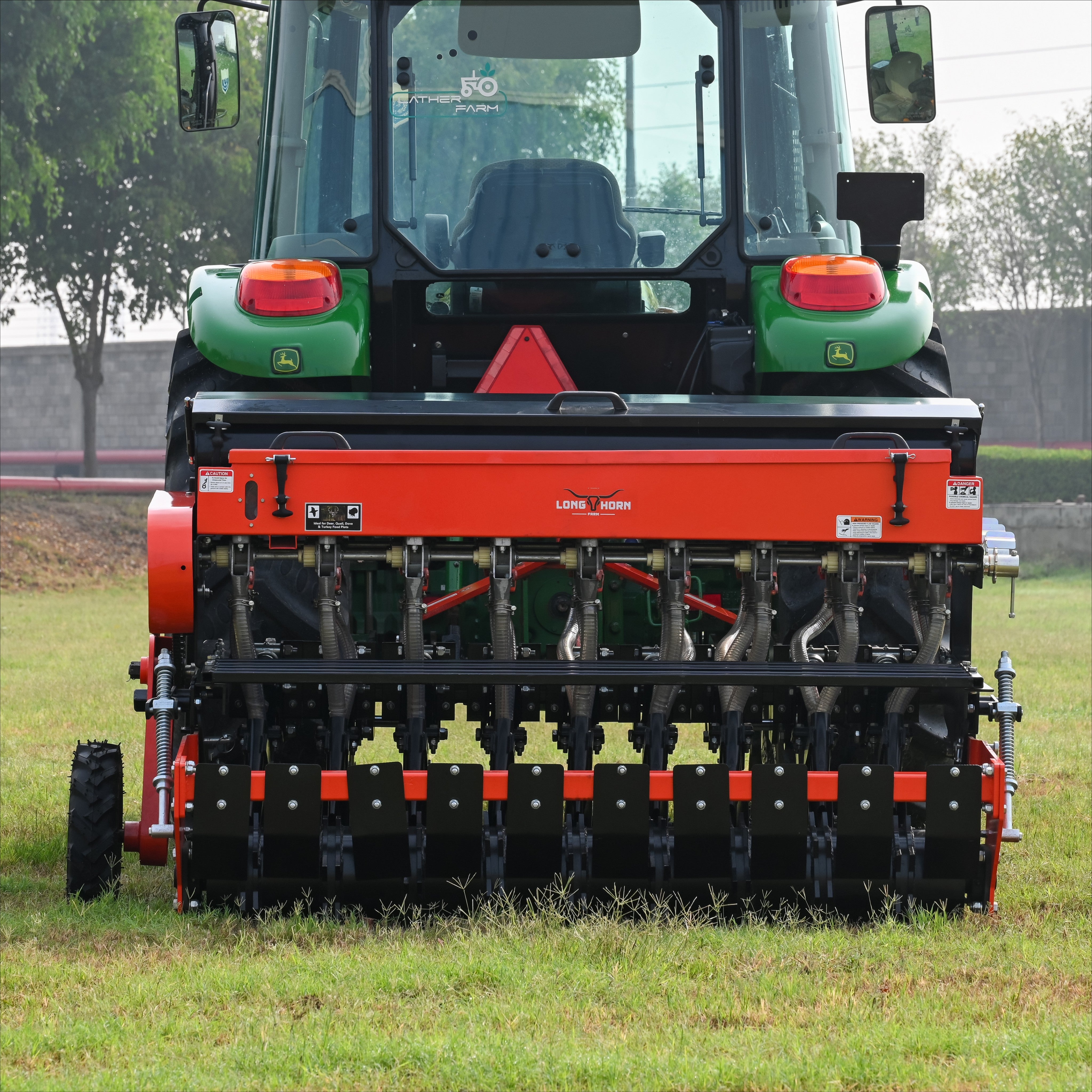

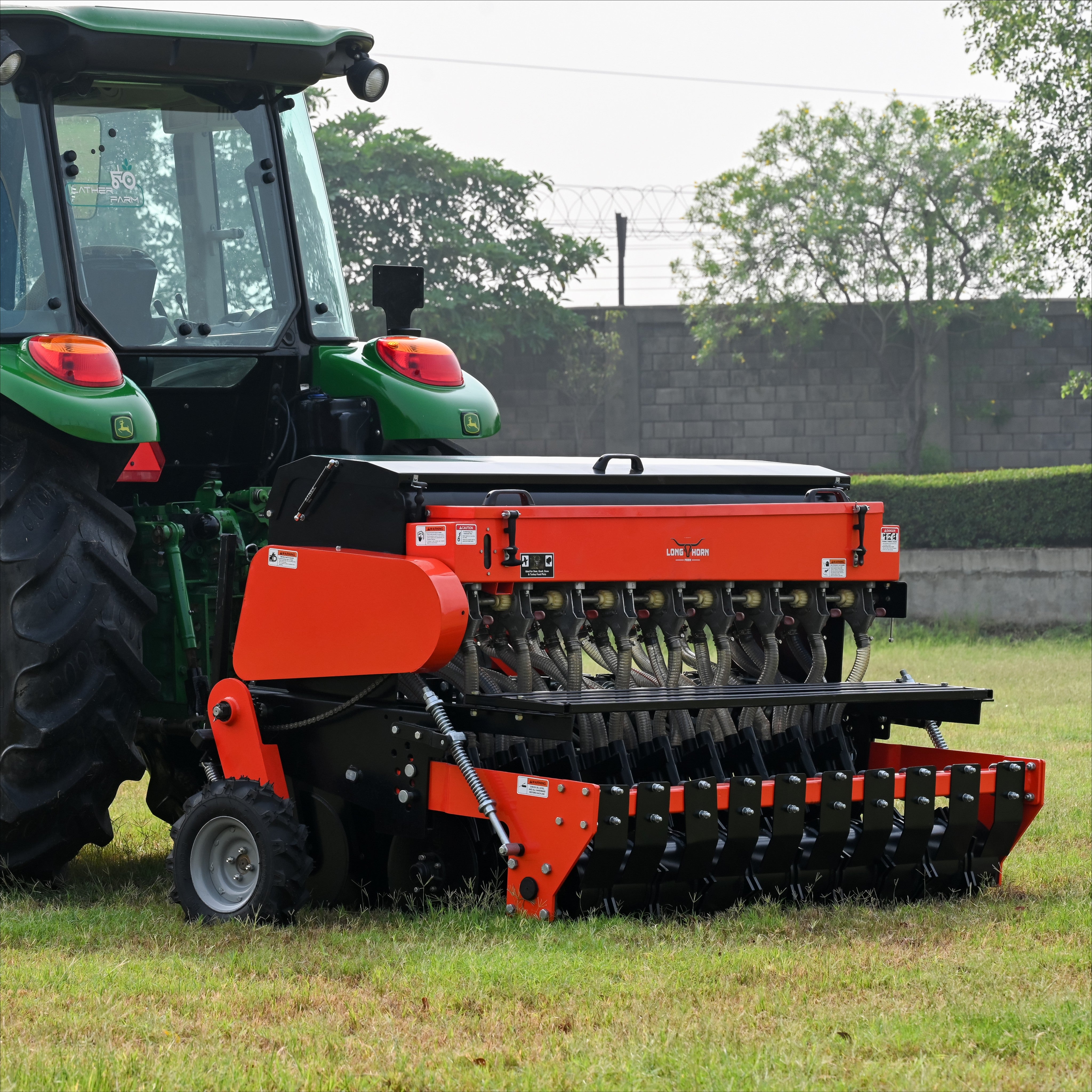

Longhorn No-Till Multi Crop Drill, also known as a Food Plotter, is an advanced seeding implement designed to plant multiple types of crops directly into the untilled soil. It eliminates the need for plowing by cutting through crop residue and placing seeds at the correct depth and spacing in a single pass. This machine is ideal for conservation farming, as it minimizes soil erosion, preserves soil moisture, and improves organic matter retention. Widely used in sustainable agriculture and wildlife food plot creation, the No-Till Multi Crop Drill increases efficiency, reduces fuel and labor costs, and promotes healthier soil ecosystems by maintaining ground cover and reducing soil disturbance.
FEATURES
- Category-I & II quick hitch option provides easy 3-point mounting on various types of tractors.
- Larger & separate box for seed reduces downtime / more acres per fill.
- Fluted seed cups with metal flutes deliver outstanding accuracy with continuous seeding.
- Easy & accurate seed metering mechanism makes seed rate changes quick and painless.
- Y-Handle adjustment provides 10 different positions for accurate seeding.
- Walkboard allows you to observe seed box & refill seed from end to end.
- Front power rubber wheel provides more traction & better surface contact.
- Offset disc opener restricts residue clogging during field operation.

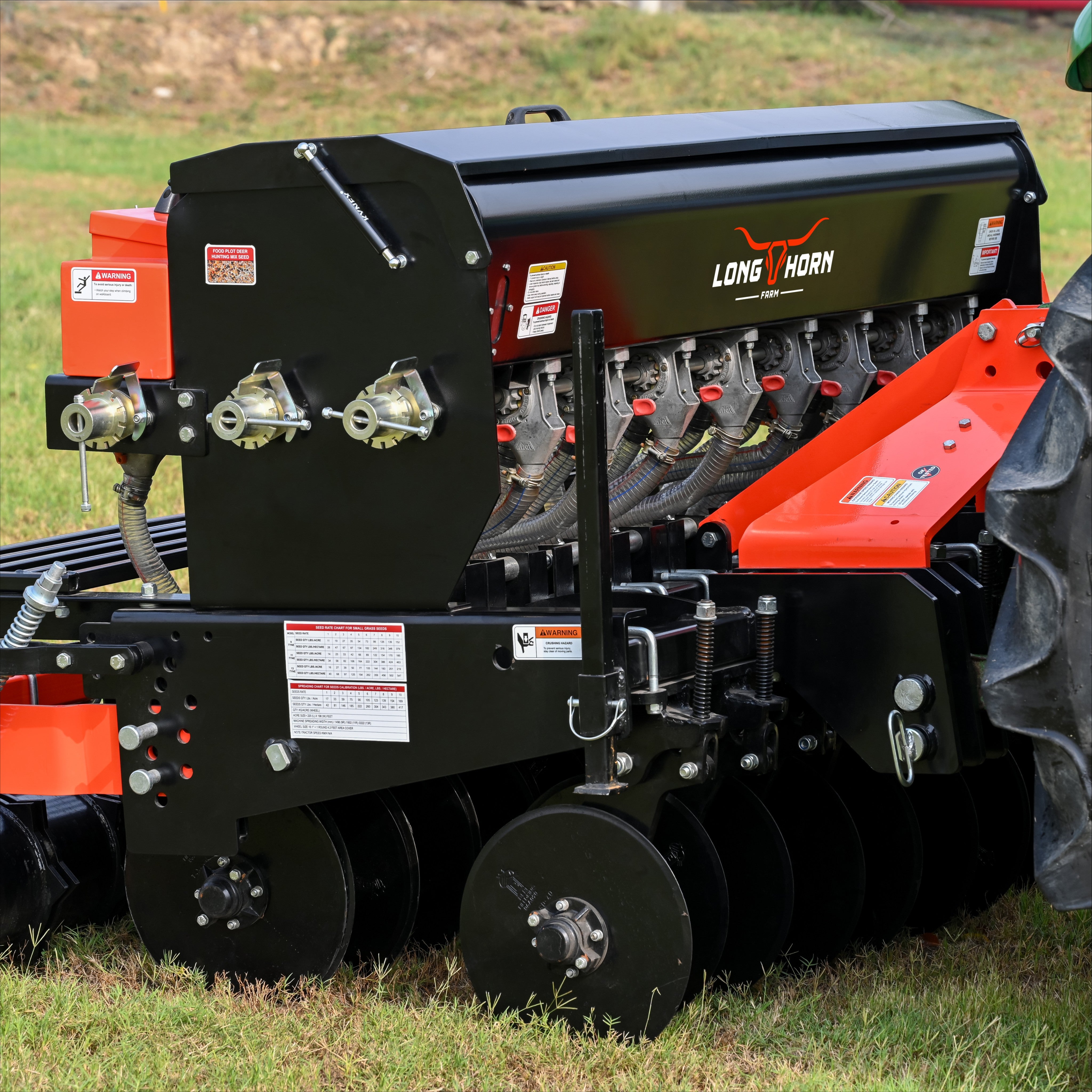

Side Chain Cover and Fluted Seed Cups
Side Drive Wheel for Power Transmission
Offset Disc Tyne Assembly
Packer Roller With Scrapper Arrangement
Specifications
| DESCRIPTION | LHNTMCPHS-9 | LHNTMCPHS-11 | LHNTMCPHS-13 |
|---|---|---|---|
| Main Frame | 2.3" x 2.3" x 0.2" (T) | ||
| 3 Point Linkage | Cat-I & Cat-II (Quick Hitch Compatible) | ||
| No. of Fluted Roller | 27 | 33 | 39 |
| No. of Seed Distribution Pipes | 27 | 33 | 39 |
No. of Row  |
9 | 11 | 13 |
| Seed Disc Opener Spacing | 7" | ||
| Actual Distance Between Seeds | Continuous Type | ||
Working Width  |
4' 9" | 5' 9" | 7' 3" |
| Overall Dimension (L x W x H) | 5' 3" x 5' 8" x 3' 8" | 5' 3" x 7' x 3' 8" | 5' 3" x 8' 3" x 3' 8" |
Seed Tank (Capacity Lbs.)  |
220 | 287 | 353 |
| Weight (Lbs. Approx.) |
1763 | 1896 | 2028 |
Tractor (HP) |
50-60 | 60-70 | 70-85 |
