Grading Scraper
- $1,220.00
$1,529.00- $1,220.00
- Unit price
- per

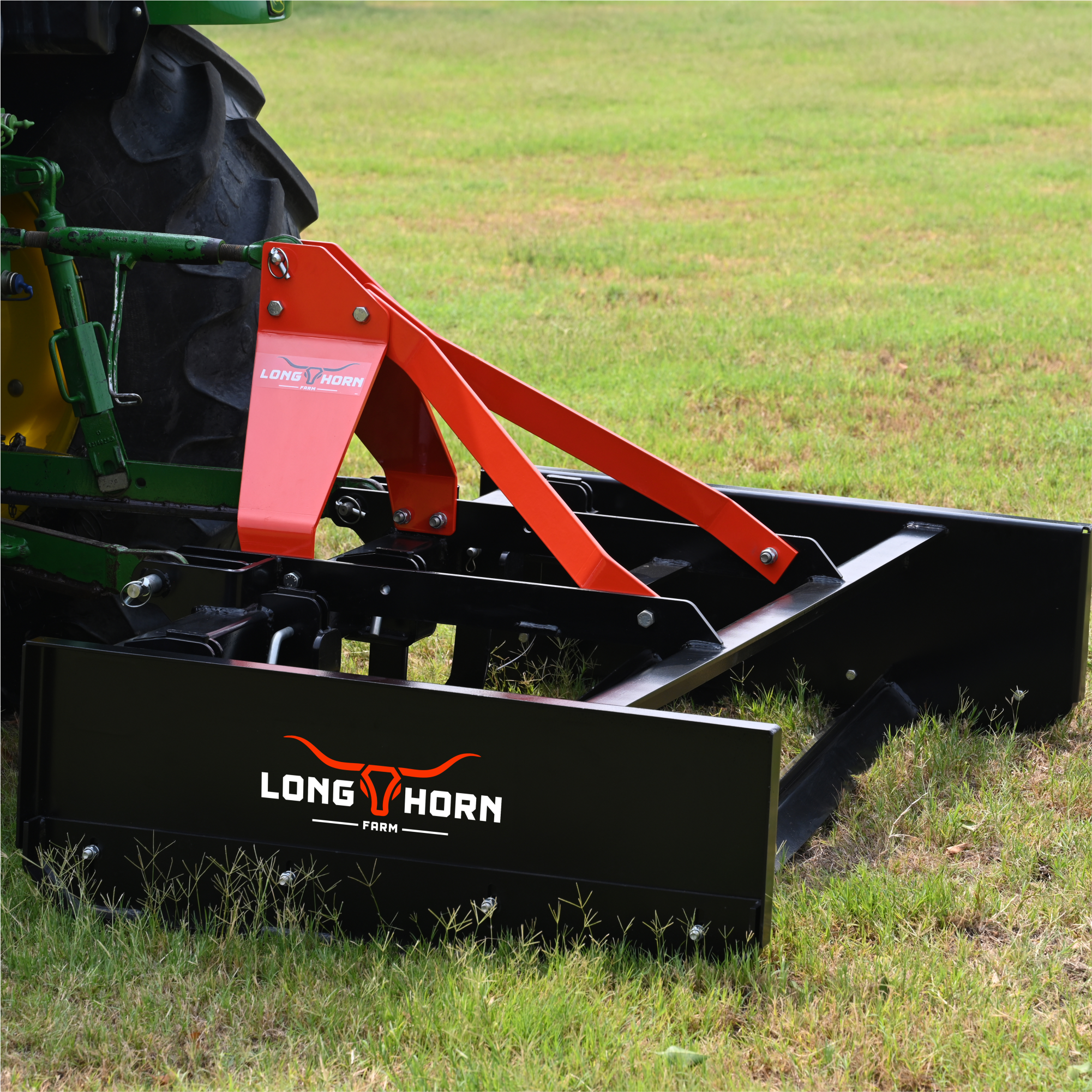

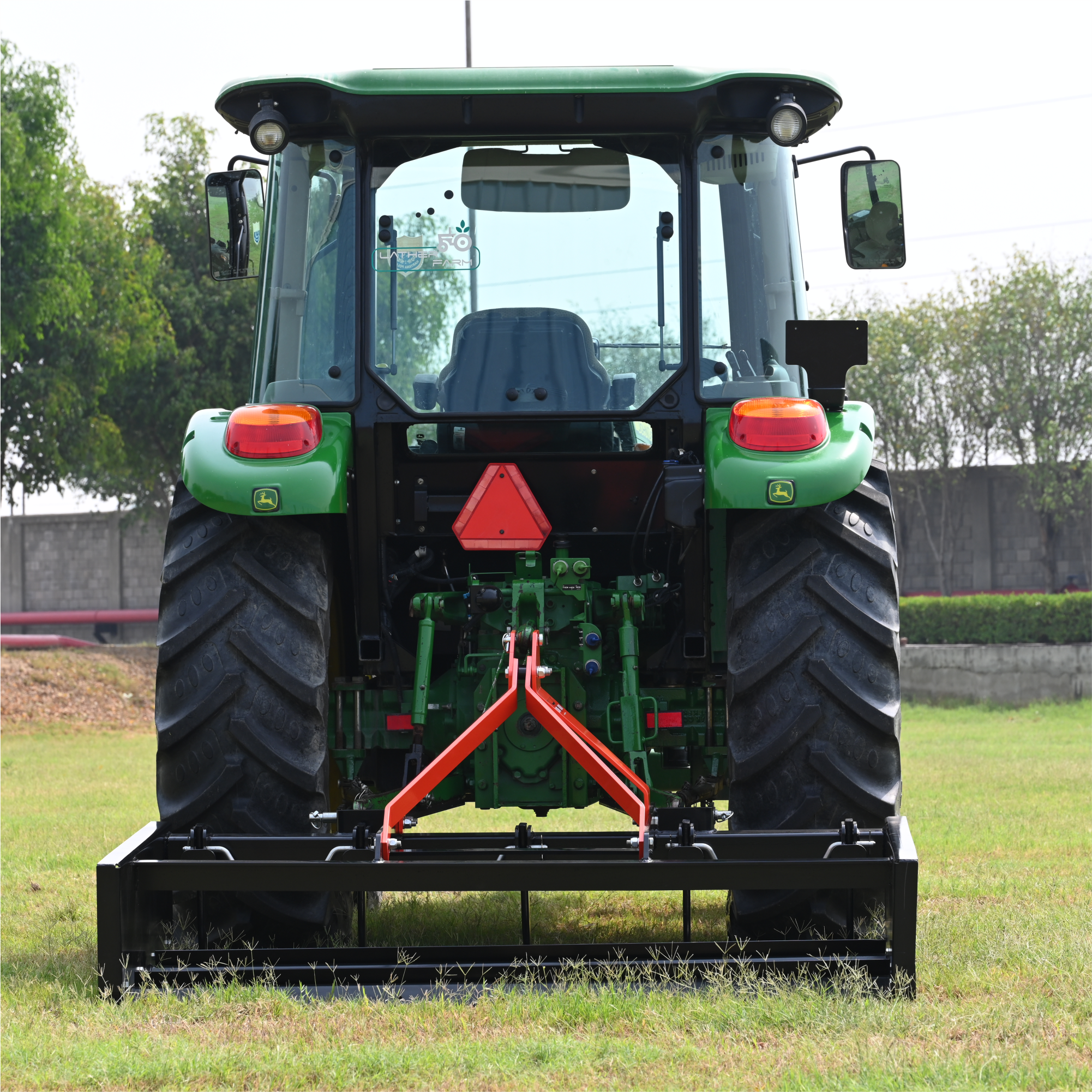

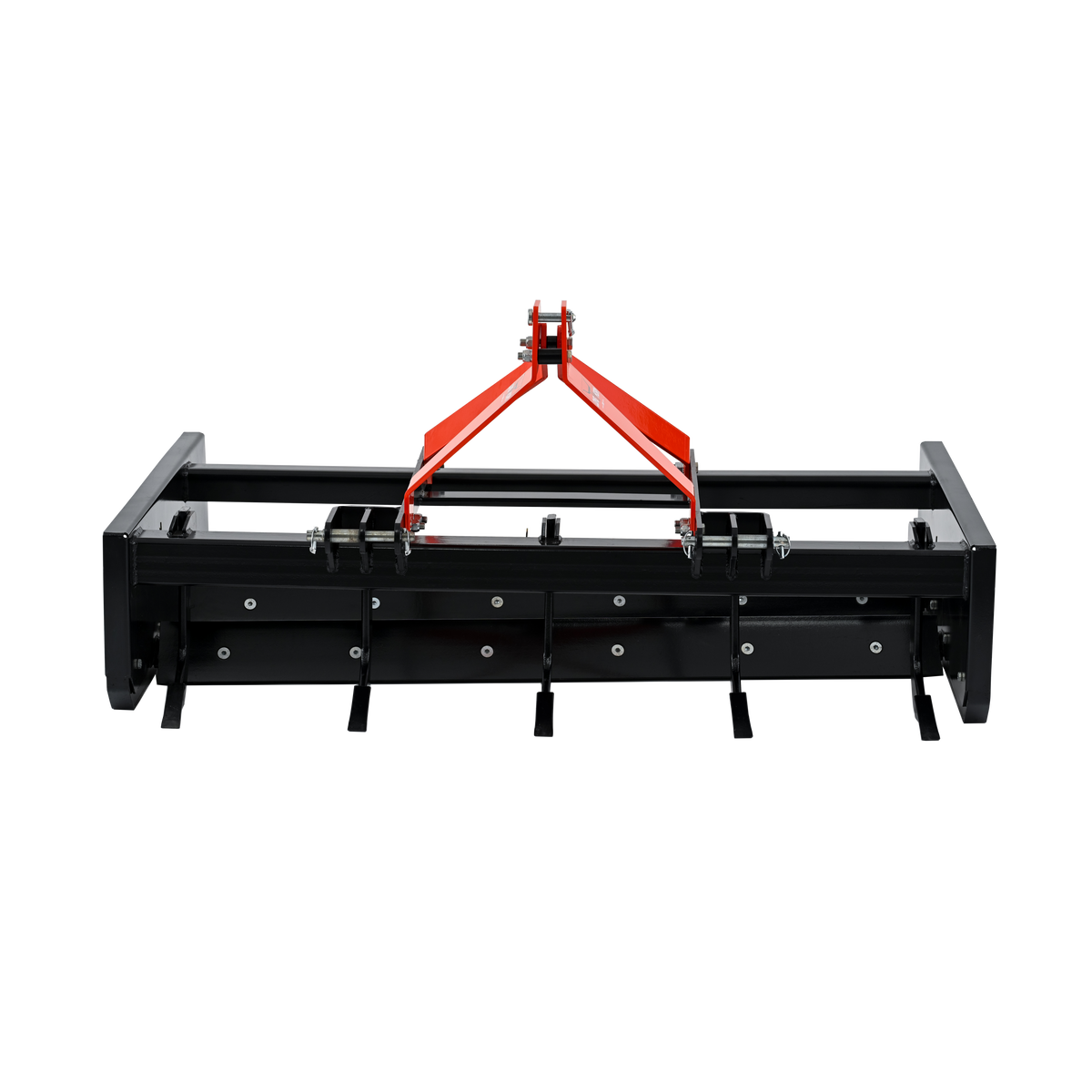

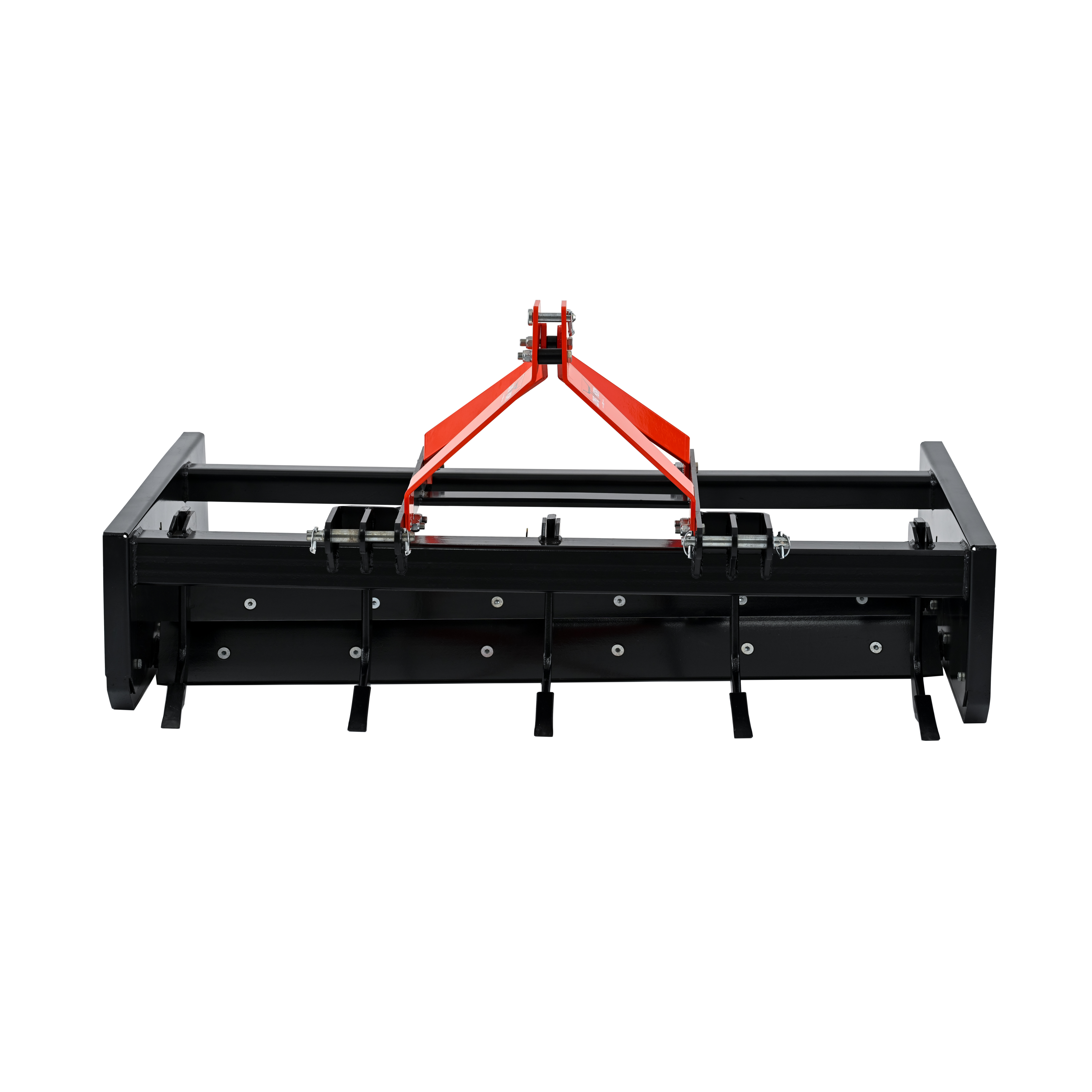

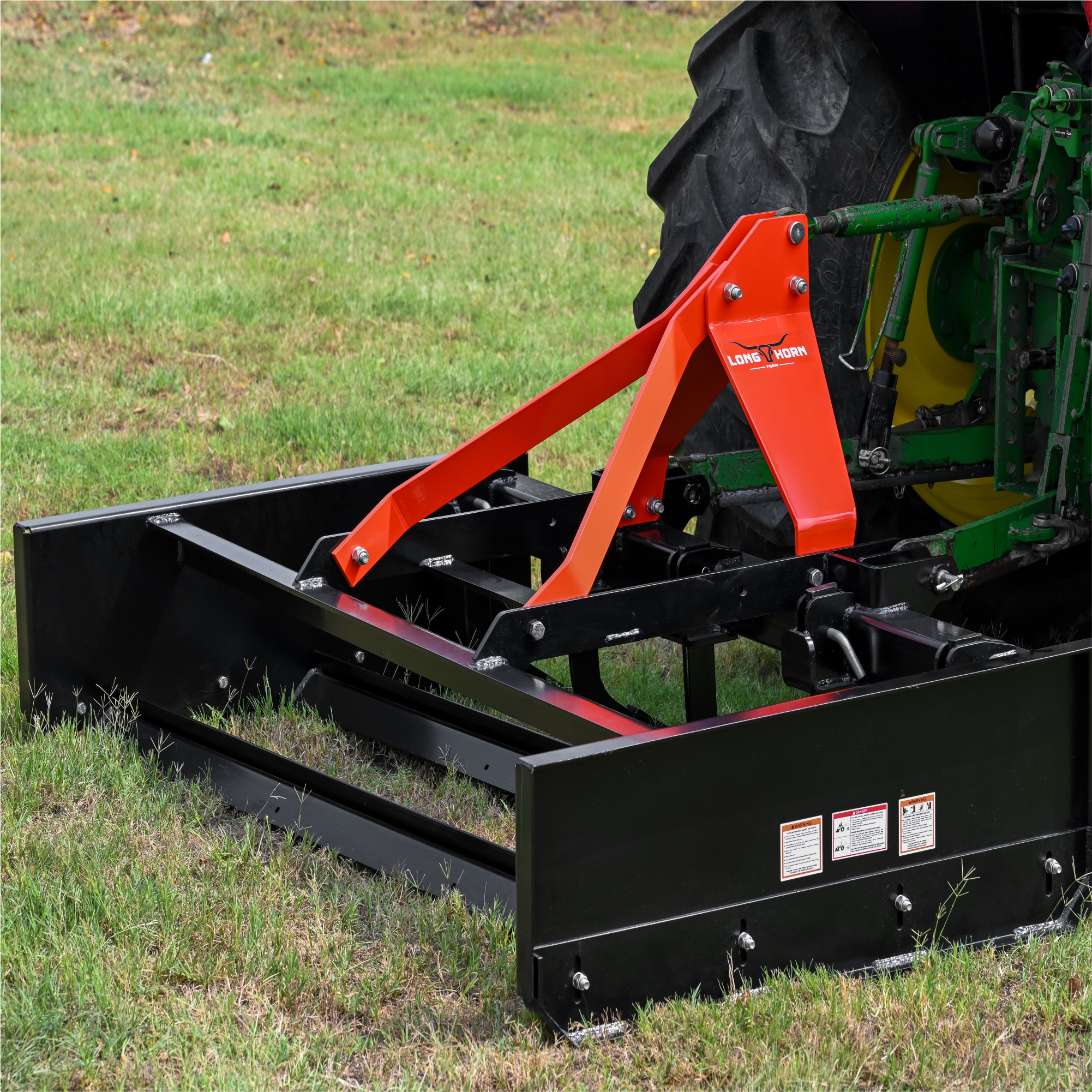

Longhorn Grading Scraper—often called a land leveler is a type of tractor attachment used primarily for leveling and smoothing the land surfaces.
Availability:
Will be in stock within 10/31/2026
Buy Now, Pay Later
Flexible payment options available
Need Help With Your Order?
Call or Text:
+1 (302) 405-3306
Overview
Longhorn Grading Scraper is a heavy-duty tractor attachment designed to level, smooth, and contour soil surfaces with precision. Ideal for maintaining gravel driveways, preparing seedbeds, and improving land drainage, it features dual cutting edges for efficient material redistribution. Built for tough conditions, it offers simple, user-friendly operation. Whether you're prepping a field or tidying up trails, it delivers consistent, professional-grade results.
Specifications
| Specification | LHGSMD-4 | LHGSMD-5 | LHGSMD-6 | LHGSMD-7 |
|---|---|---|---|---|
| Overall Length | 3 ft. 8" | |||
| Overall Width | 4 ft. 4" | 5 ft. 4" | 6 ft. 4" | 7 ft. 4" |
| Working Width | 4 ft. | 5 ft. | 6 ft. | 7 ft. |
| Box Height | 1 ft. 4" | |||
| Frame Tube Size | 4" x 4" x 0.31" | |||
| Mould Board Thickness | 0.20" | |||
| Number of Scarifiers | 4 | 5 | 6 | 7 |
| Cutting Blade (Size & Qty.) | 6" X 0.39", High Carbon Steel, Reversible (2) | |||
| Hitch | CAT-1 & CAT-2 | |||
| Quick Hitch Compatible | Yes | |||
Weight (with Scarifier) (Lbs.)
|
509 | 573 | 644 | 703 |
|
Weight (without Scarifier) (Lbs.)
|
498 | 518 | 588 | 626 |
Tractor (HP)
|
30-45 | 45-60 | ||
FEATURES
- Suitable for Land leveling, Scraping, Grading, construction sites & building driveways.
- Reinforced steel Main Frame design for easy attachment and durability.
- Replaceable side skids for depth adjustments.
- Adjustable sacrificer teeth with replaceable tips for durability and versatility.
- High-carbon reversible/replaceable cutting edges for versatility and a level finish.
- 4 positions heat treated shanks with replicable tips.
- Ensure fast, easy and safe hook-ups with ASABE quick-hitch compatibility.
3 Point Linkage
Skid Shoes
Grading Blade
Hardened Tips
